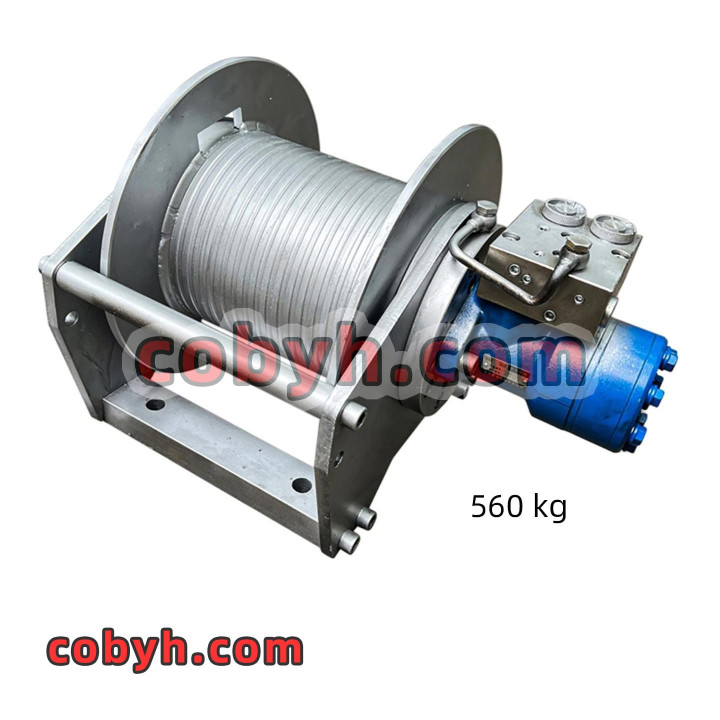

832-4424kg 60-23m/min Hydraulic Winch - Hydraulic Hoist, Hydraulic Towing Winch

832-4424kg 60-23m/min Hydraulic Winch - Hydraulic Hoist, Hydraulic Towing Winch

¥2,124.40
Tax included

Please choose your configuration.

  • 1: 832kg 47m/min
  • 2: 821kg 37m/min
  • 3: 825kg 23m/min
  • 4: 1261kg 45m/min
  • 5: 1490kg 36m/min
  • 6: 2133kg 60m/min
  • 7: 2786kg 38m/min
  • 8: 3165kg 23m/min
  • 9: 4424kg 28m/min
Configuration
Share

832-4424kg 60-23m/min Hydraulic Winch - Hydraulic Hoist, Hydraulic Towing Winch

Parameters

Configuration 1 2 3 4 5 6 7 8 9
Pulling Capacity (kg) 832 821 825 1261 1490 2133 2786 3165 4424
Line Speed (m/min) 47 37 23 45 36 60 38 23 28
Pressure (MPa) 16.5 13 8.5 21 20 20.5 17 12 14
Flow (L/min) 60 75 150 200
Wire Rope Diameter (mm) 8 12 20
Wire Rope Length (m) 140 100 80

Components

Configuration 1 2 3 4 5 6 7 8 9
C1 Exclusive Drum for Wire Rope
C2 Hydraulic Control Valve
C3 Mounting Base
C4 Hydraulic Motor

Dimensions

Configuration 1 2 3 4 5 6 7 8 9
L1 Fit to Wire Rope
L2 (cm) 32 32 52
L3 (cm) 20 30

Live Photos

  • Reference
